Pour les infos que j'ai pu récupérer sur le net :
L'utilisation est agréable, avec une bonne réception et un son clair et fourni en basses.Form FM/AM tuner
<FM tuner part>
Practical speed 1.8 microvolts (10.3dBf)
The degree of effective selection (±400kHz) Wide:45dB
Narrow:75dB
Capture ratio Wide:0.8dB
Narrow:1.3dB
S/N ratio (stereo) Wide:77dB
Narrow:73dB
Image disturbance ratio 85dB
IF disturbance ratio 95dB
Spurious disturbance ratio 90dB
AM oppression ratio Wide:60dB
Narrow:55dB
THD (stereo, 1kHz) Wide:0.1%
Narrow:0.3%
Stereo separation (1kHz) Wide:50dB
Narrow:45dB
Frequency response 30Hz-15kHz+0.5 -1.0 dB
An Output voltage/impedance 0V-1.5V/5kohm
<AM tuner part>
Practical speed (S/N=20dB, bar antenna) 100microvolts/m
The degree of selection (±10kHz) 35dB
S/N 55dB
Image disturbance ratio 50dB
IF disturbance ratio 40dB
THD 0.8%
An Output voltage/impedance 0-500mV/5kohm
<Synthesis>
Power source AC100V, 50Hz/60Hz
Power consumption 18W
Dimensions DA-F680: Width 480x height 154x depth of 400mm
DA-F 680S: Width 424x height 154x depth of 389mm
Weight DA-F680:7.9kg
DA-F680S:7.9kg

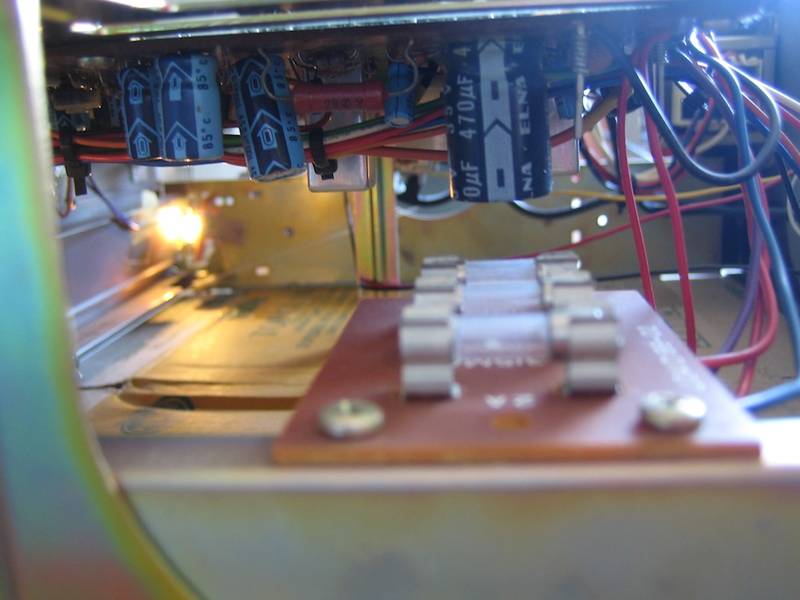

Il n'est pas encore ni nettoyé ni branché a mon système principal donc ça restera limité pour le CR.
